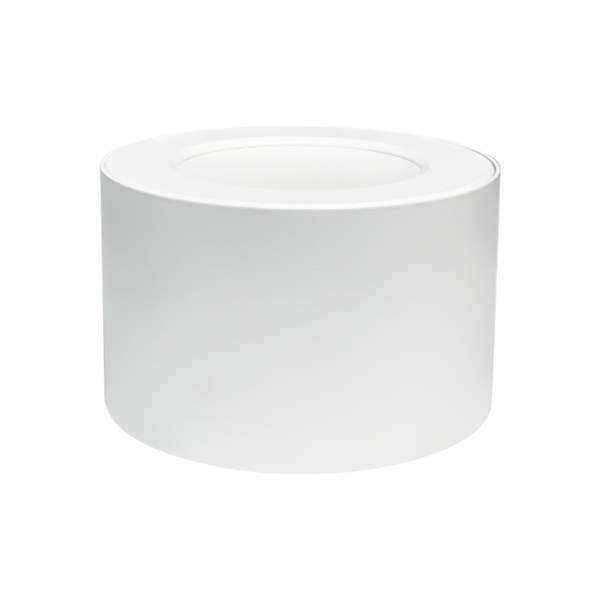

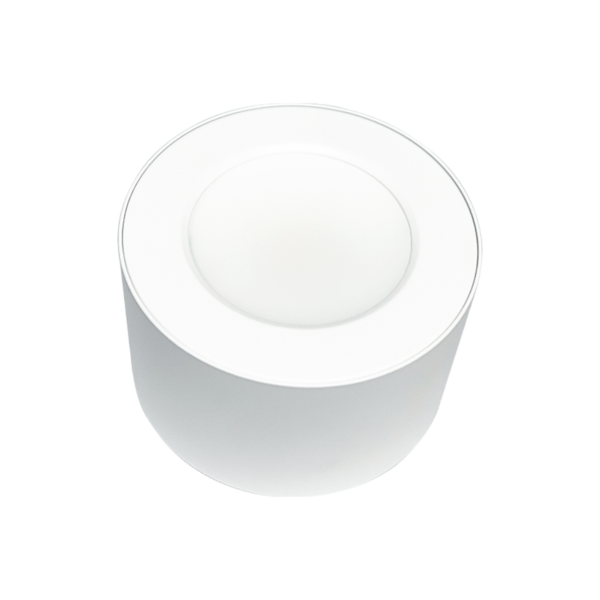

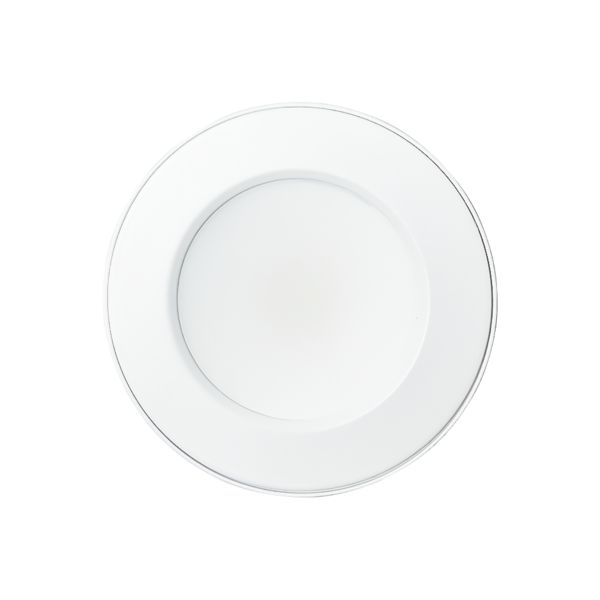

3A 10W LED Downlight Kit - DL1066 | 90mm | Surface Mount | Dimmable | Tri - Color

$54.95
SKU: DOWNL10501
Quantity:
In stock

3A LED Downlight 10W - DL1066

This Surface Mounted Downlight is designed for concrete/timber ceilings. Wide beam angle with matt diffuser casts a smooth light beam throughout the room, perfect for ceiling 2.7m and under.

Beam Angle 120°

The beam angle of a lamp is the angle at which the light is distributed or emitted. Lamps such as Halogens (and some LEDs) come in a variety of angles from, 4 degree to 60 degree with some of the larger halogen lamps up to 120 degree.These are typical beam angles spread abbreviations.

Dimmable

Unlike traditional lighting such as incandescent, dimmable LED bulbs don't rely on voltage to dictate their level of brightness. Instead, they essentially rely on a cycle of being on and off. These cycles operate in a matter of milliseconds, so you won't be aware of them actually turning on and off

Calculate Lumens

Wattage Average Lumen Output
5W 450lm
8W 650lm
9W 730lm
10W 875lm
12W 950lm
13W 1000lm
14W 1200lm

Measurement Unit Feet Inches Meters


Select a layout

Measure the area and enter it here:

Length (in meters):

Width (in meters):

Calculate Placement & Spacing of Lights

0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0


  • Allowing change between 3 Pre-set Colour-temperatures
  • Dimmable range 3% - 100%
  • SMD LED chips sets
  • An average lifespan of 40,000 hours
  • Dimmable via trailing edge and universal dimmers
  • High energy-efficient LED chips and a translucent diffuser
  • Aluminium heat sink with a polycarbonate shell
  • 3 years replacement warranty
  • Input: AC200-240V 50-60Hz
  • Wattage: 10W

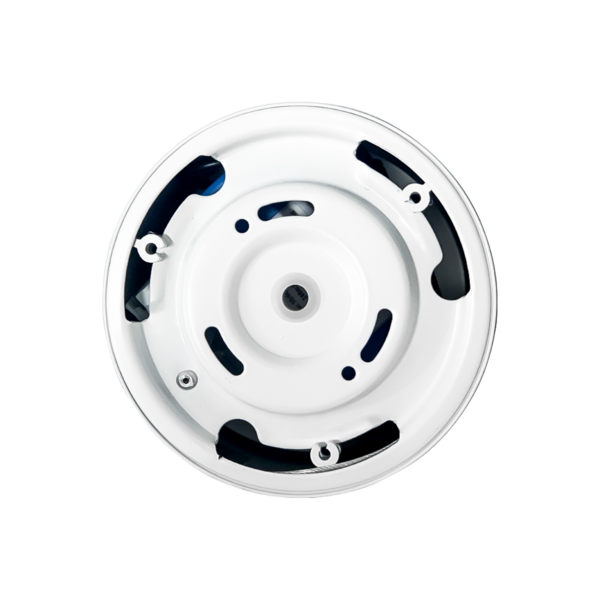

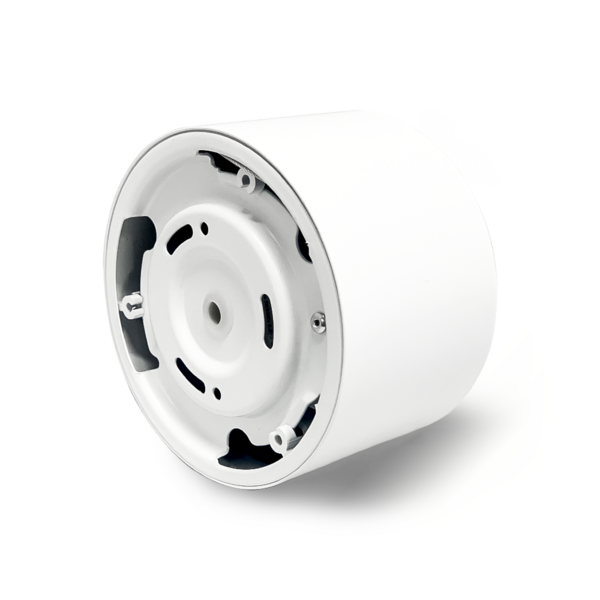

  • Mounting Method: 3 x Extension Screws supplied

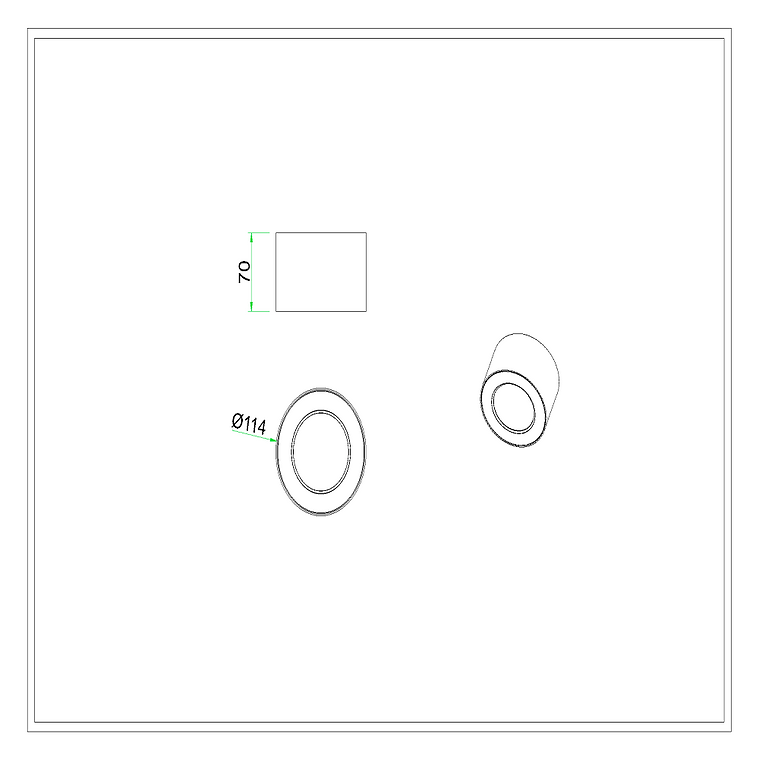

  • Dimention (D x H): 114 x 70mm
  • Insulation Contacting Rating: IC - 4
  • Lifespan: > 40,000Hrs
  • Lumen Output: 880-1050ml
  • Dimmable: Yes
  • Colour Temperature: 3000K - 4000K - 5000K
  • Warranty: 3 Years

3 Years
