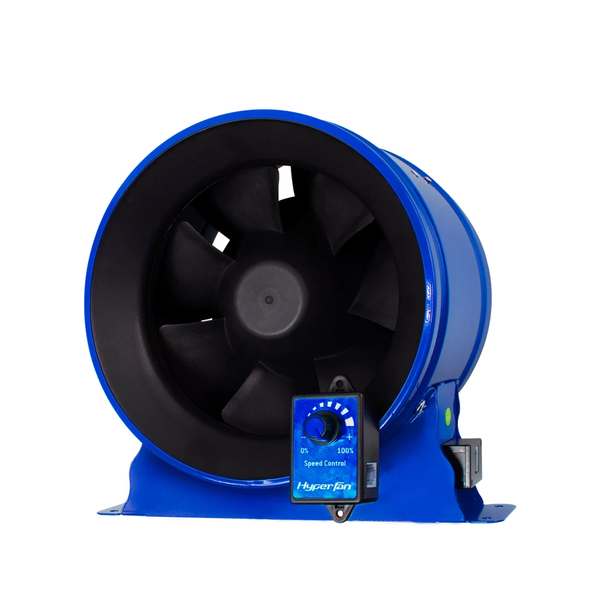

Phresh Hyper Mixed Flow Inline Fan v2 w/ Controller - [Size: 150MM (6" Inch)]

$326.95
SKU: FANS45121
Quantity:
In stock

Hyperfan is the latest technology available in mixed flow fans. Hyperfan utilize aircraft "taper blade technology" to fully optimize the aerodynamic movement of air over the fan blade.

  • New 9 pole digital EC "Brush-Less" motors
  • High fan efficiency @7.85CFM per watt
  • Higher linear airflow output than other fans
  • Higher static pressure output than outer fans
  • Detachable, fully variable speed controller included
  • Sturdy, steel housing and Abec 7 ball bearings
  • 0-10V controller compatible via RJ9 or RJ11 cable

Size: 150MM (6" Inch)

  • Max Air Flow: 560 M^3/h - 330CFM - 156 LPS
  • RPM: 5000
  • Amps: 0.3A
  • Weight: 1.9KG
  • Noise: 66 dBA
  • Fan Pressure: 545Pa/iwg2.2"
  • Diameter: 150MM (6" Inch)
  • Width: 204MM (including mounting bracket)
  • Length: 140MM
  • Housing: Stainless Steel
  • Blade Design: Mixed flow - laminar blade
  • Climate Rating: T
  • IPX Rating: IPX2

Size: 200MM (8" Inch)

  • Max Air Flow: 1230 M^3/h - 725CFM - 342 LPS
  • RPM: 4000
  • Amps: 0.7A
  • Weight: 2.8KG
  • Noise: 69 dBA
  • Fan Pressure: 560Pa/iwg2.25"
  • Diameter: 200MM (8" Inch)
  • Width: 248MM (including mounting bracket)
  • Length: 170MM
  • Housing: Stainless Steel
  • Blade Design: Mixed flow - laminar blade
  • Climate Rating: T
  • IPX Rating: IPX2

Size: 250MM (10" Inch)

  • Max Air Flow: 1840 M^3/h - 1084CFM - 512 LPS
  • RPM: 3600
  • Amps: 1.5A
  • Weight: 4.8KG
  • Noise: 72 dBA
  • Fan Pressure: 610Pa/iwg2.45"
  • Diameter: 250MM (10" Inch)
  • Width: 314MM (including mounting bracket)
  • Length: 205MM
  • Housing: Stainless Steel
  • Blade Design: Mixed flow - laminar blade
  • Climate Rating: T
  • IPX Rating: IPX2

Size: 300MM (12" Inch)

  • Max Air Flow: 3100 M^3/h - 1827CFM - 862 LPS
  • RPM: 3200
  • Amps: 2.8A
  • Weight: 6.5KG
  • Noise: 74 dBA
  • Fan Pressure: 730Pa/iwg2.493"
  • Diameter: 300MM (12" Inch)
  • Width: 364MM (including mounting bracket)
  • Length: 255MM
  • Housing: Stainless Steel
  • Blade Design: Mixed flow - laminar blade
  • Climate Rating: T
  • IPX Rating: IPX2

2-Year Replacement Warranty

  • If the product is faulty within the warranty period, the product will be replaced with a new one.
  • Please send the product to the following address on the contact us page.
